Clime Set

Clime Set integrates 4 environmental sensors - temperature, humidity, light intensity and atmospheric pressure. All sensors are digital, feature low-power operating modes and are connected using the I²C bus. It is a great product for environmental monitoring, weather stations, etc.

In stock
Code: HWS006
Brand: HARDWARIO
€78,70 €65 excl. VAT
Category: Sets
Warranty: 3 years

Industrial IoT Kit

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

Clime Set

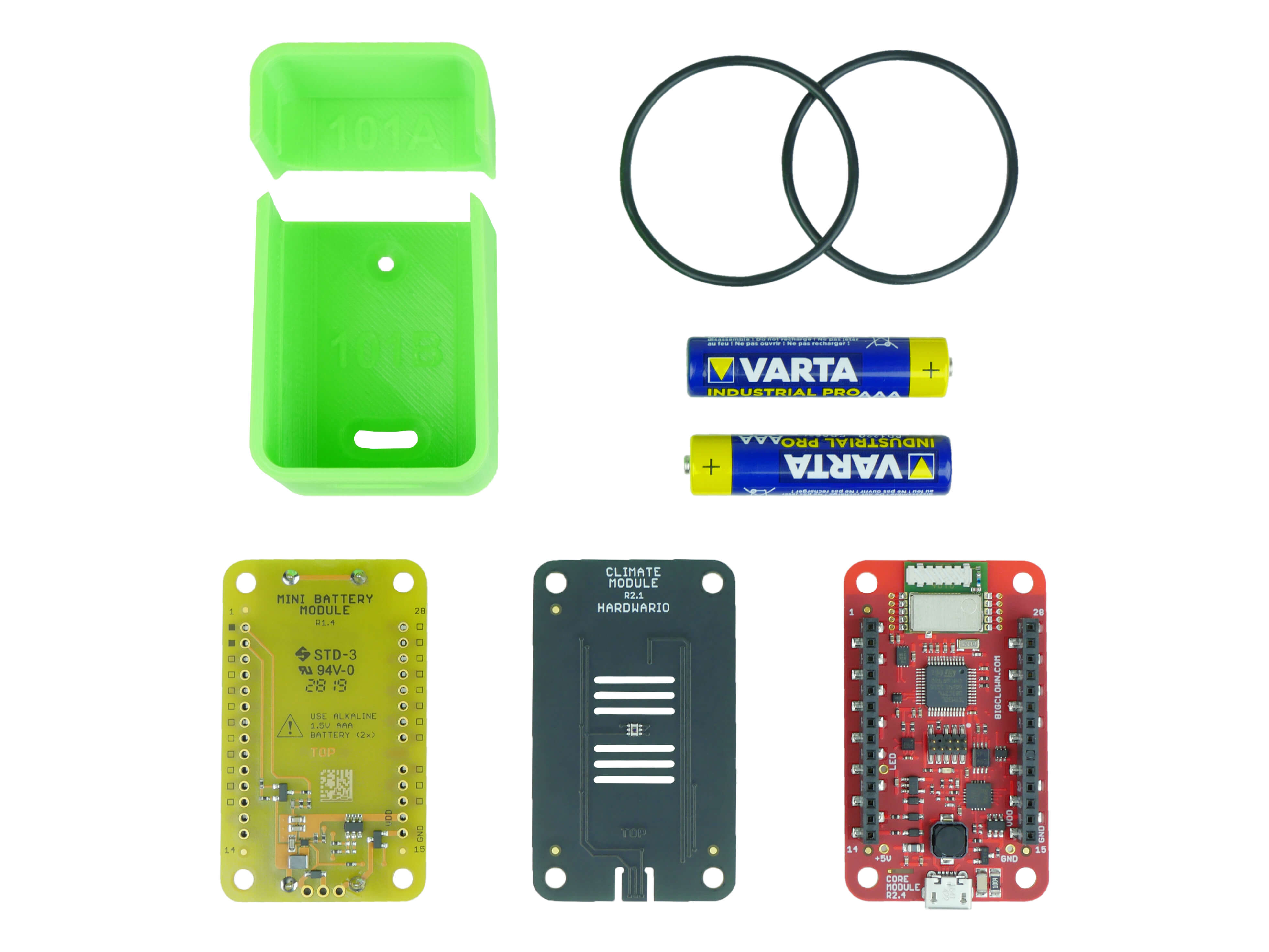

With Clime, you can measure temperature, relative humidity, light intensity and atmospheric pressure. The Clime Set includes:

  • Core Module,
  • Climate Module,
  • Mini Battery Module,
  • 2 AAA batteries,
  • 3D printed enclosure 101,
  • fastening rubber bands.

The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.

Projects

The basic function of this set is to monitor temperature, humidity, light intensity and atmospheric pressure. For example, you can use the kit to monitor conditions in your home, office or to monitor an iguana aquarium.

Since it also includes a Core Module that is equipped with a 3-axis accelerometer and digital thermometer, there are a variety of other projects you can do with the kit. You can find the basic projects on the web, and more at hackster.io.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Window, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

Introducing HARDWARIO Playground

More about Core Module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2V to 3.6V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimensions 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
Uploaded firmware in this set

twr-radio-climate-monitor



Only registered users may post articles. Please log in or register.

Do not fill out this field:
RM Avatar of author !WANTED! !detailed specification! 2018-02-08 05:51 PM
Hi, I am curious whether I can operate/place ClimateMonitorKit outside - in real (wet) conditions. In other words, I miss basic feature data/specification for the kit. I would be Nice (and Needful and Necessary) to know such a details and experiences.
PH Avatar of author Reference to technical specification 2018-02-08 06:52 PM
Hi Radim, thank you for asking the question. You can use this kit outdoor as long as it is not exposed to snow and/or rainfall. Since it is a kit assembled from modules, the specification is of each module can be found here: https://shop.bigclown.com/climate-module/ https://shop.bigclown.com/core-module/ https://shop.bigclown.com/mini-battery-module/ Thanks and let me know if you have any other question. Cheers! P.
