Clime XL SetCode: HWS021
Product detailed description
Industrial IoT Kit

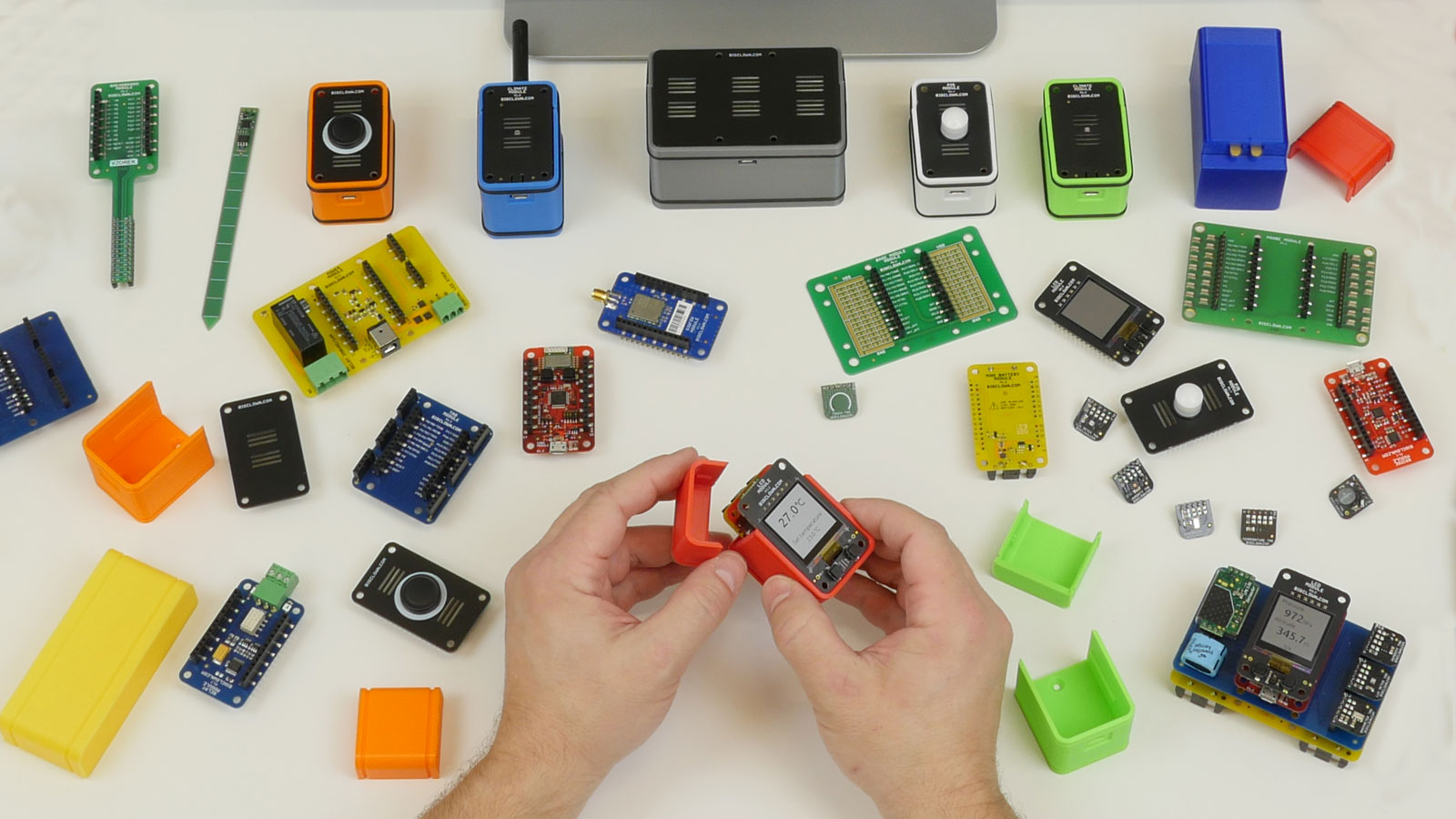

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.
Clime XL Set
The Clime XL set is a complete station for monitoring indoor conditions with an LCD display. It allows you to wirelessly monitor temperature, humidity, atmospheric pressure and volatile organic compound (VOC) and CO2 concentration. The Clime XL set includes:
- Core Module,
- LCD Module,
- Humidity Tag (humidity sensor),
- Barometer Tag (atmospheric pressure sensor),
- VOC-LP Tag (Volatile Organic Compound concentration sensor),
- CO2 Module (CO₂ concentration sensor),
- Battery Module,
- 4 AAA batteries,
- 3D printed enclosure 204,
- fastening rubber bands.
The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.
The basic function of this set is to monitor temperature, humidity, carbon dioxide and volatile organic compound (VOC) concentrations. The set displays all of this data on an LCD display with control buttons. For example, you can use the kit to monitor conditions at home, school or office. Keeping carbon dioxide and VOCs at optimal levels has a positive effect on your health.

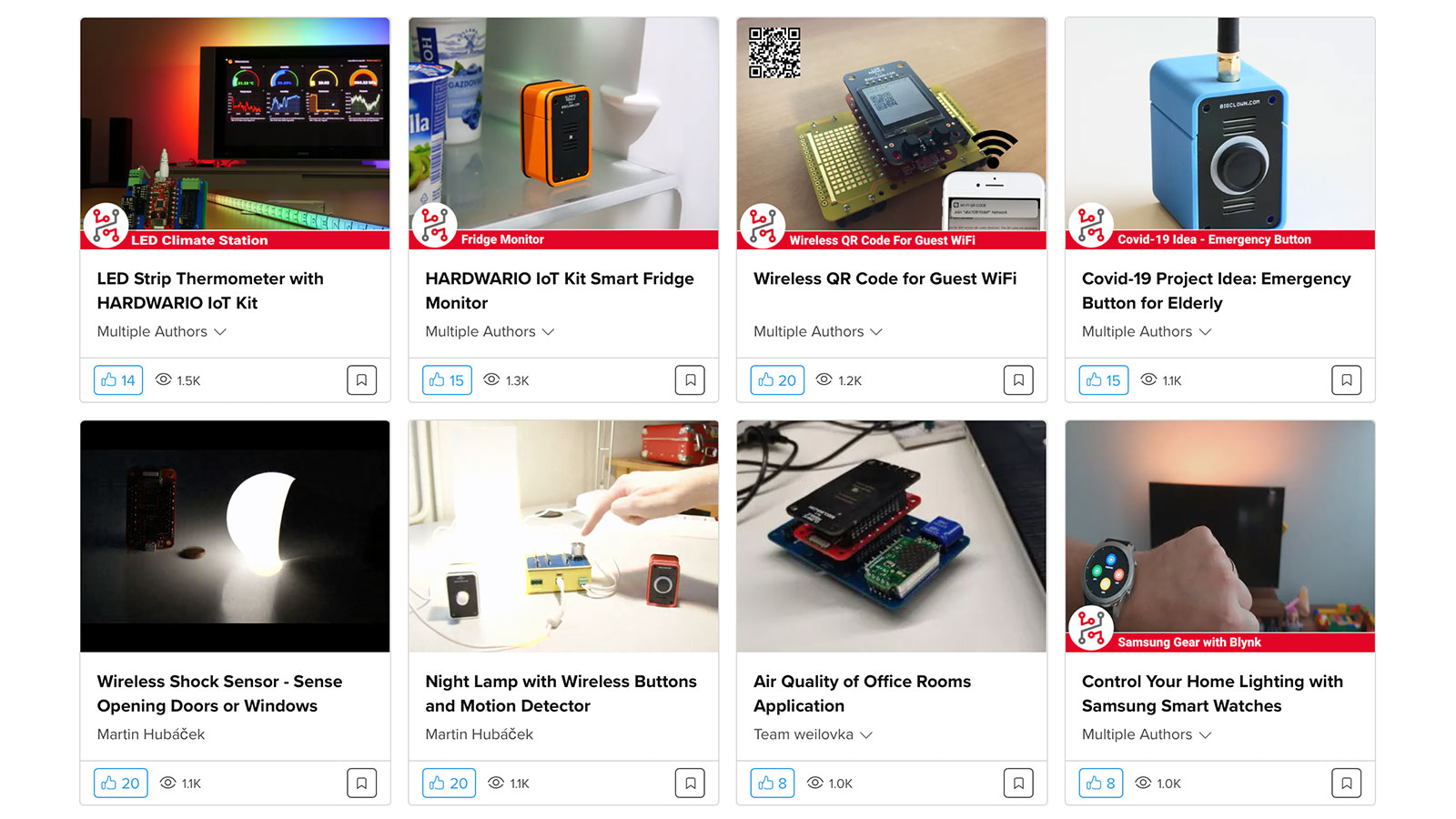

Since it also includes a Core Module that is equipped with a 3-axis accelerometer and digital thermometer, there are a variety of other projects you can do with the kit. You can find the basic projects on the web, and more at hackster.io.

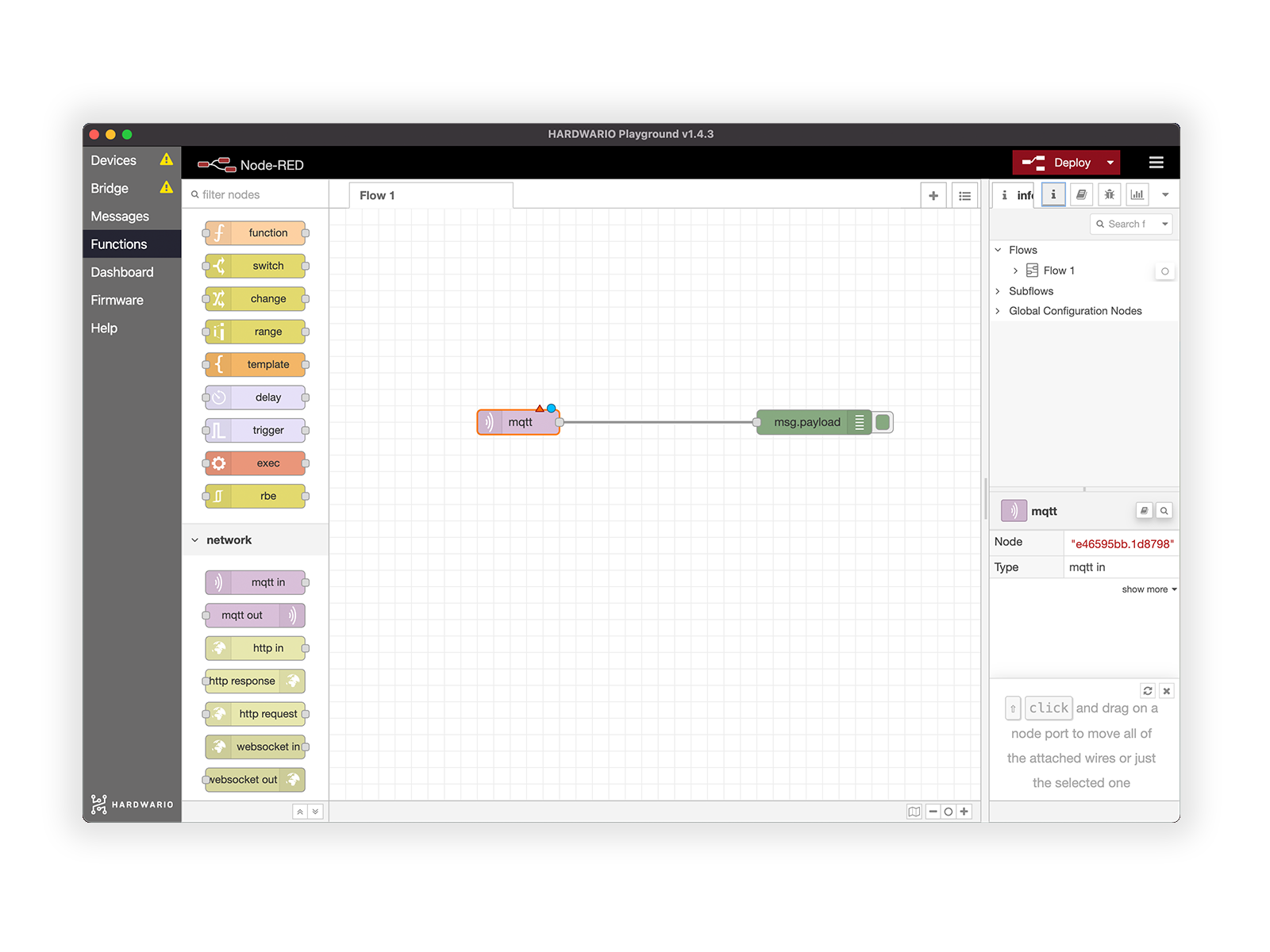

The kit includes the HARDWARIO Playground app, which can be downloaded for Windows, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.
The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.
More about Core Module
|MCU||32-bit ARM Cortex M0+ STM32L083CZ|
|Radio communication||SPIRIT1 868 or 915 MHz|
|Memory||192 kB flash / 20 kB RAM|
|Voltage range||from 2V to 3.6V|
|Idle consumption||< 30 μA|
|Operating temperature range||from -40 to +70 °C|
|Dimensions||33 mm (width) × 55 mm (height)|
|Interfaces||18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
|Uploaded firmware in this set||twr-radio-air-quality-monitor|
