LoRa Test Set
Code: HWS014Product detailed description
LoRa Test
With the LoRa Test Set you can easily test any LoRaWAN network. The tester is fully configurable, battery powered. Data is displayed on the LCD display, configuration is done with integrated buttons. If you also want to test the strength of signals and visualize the data on a map, you will also find a version with GPS in our offer.
Open-source code, worldwide frequencies, datarates including class C and support for periodic sending. More information about the project can be found at Hackster.io.

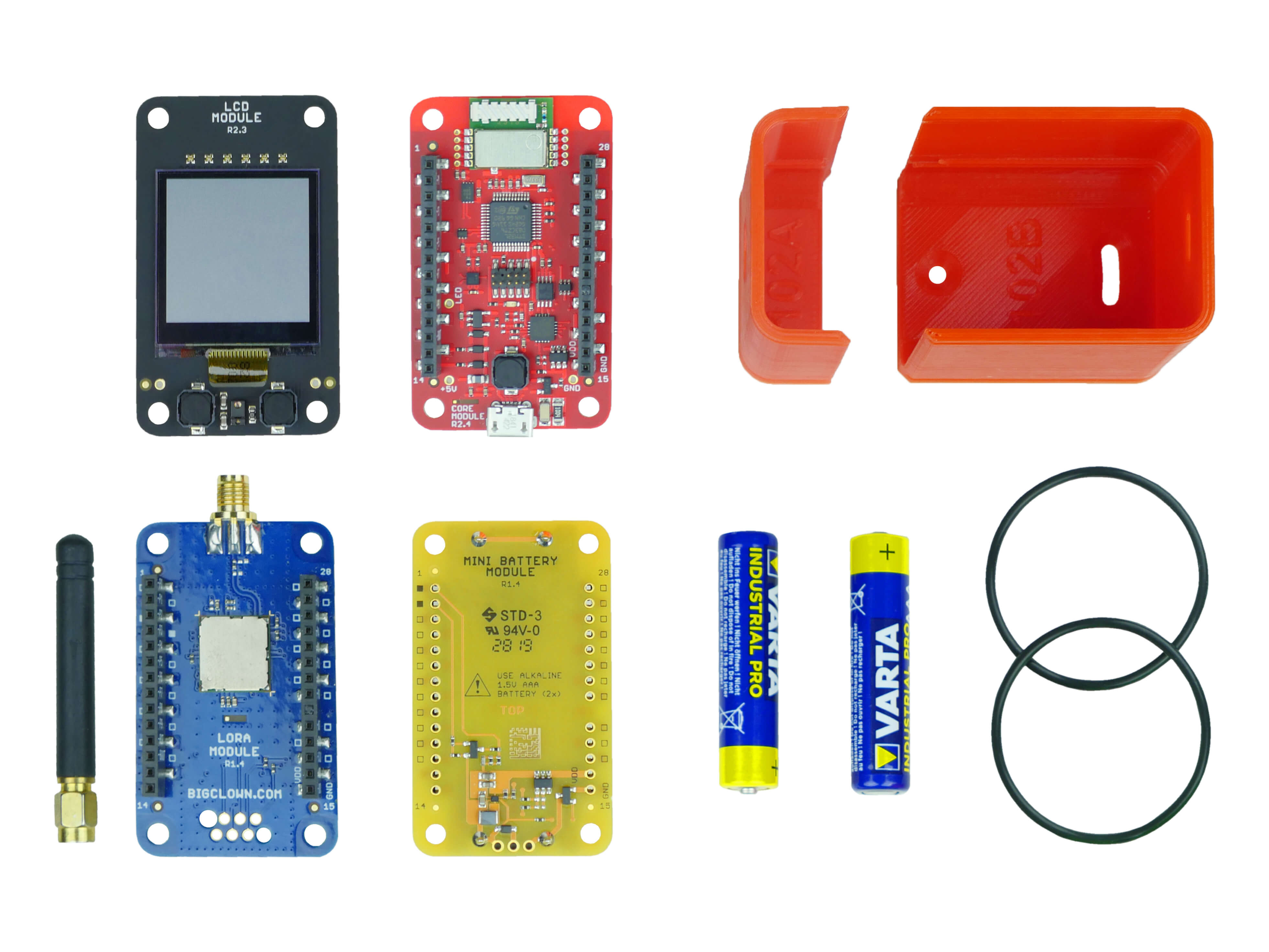

LoRa GPS Tester Set includes:
- Core Module,
- LoRa Module,
- Display Module,
- Mini Battery Module,
- 2 AAA batteries,
- 3D printed enclosure 102,
- fastening rubber bands.
Industrial IoT Kit
HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.
Projects
The basic function of this set is to test the LoRaWAN network. Since it also includes a Core Module that is equipped with a 3-axis accelerometer and a digital thermometer, you can also use this kit as a LoRaWAN thermometer or to send LoRaWAN network information about device shaking.
You can easily add any of our modules to the set.
HARDWARIO Playground
The kit includes the HARDWARIO Playground app, which can be downloaded for Window, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.
The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.
More about Core Module
| MCU | 32-bit ARM Cortex M0+ STM32L083CZ |
| Radio communication | SPIRIT1 868 or 915 MHz |
| Memory | 192 kB flash / 20 kB RAM |
| Voltage range | from 2V to 3.6V |
| Idle consumption | < 30 μA |
| Operating temperature range | from -40 to +70 °C |
| Dimensions | 33 mm (width) × 55 mm (height) |
| Interfaces | 18× GPIO, 3× UART, 2× I2C 1× SPI, 5× ADC, 2× DAC, 10 pins SWD connector for debugging |
| Uploaded firmware in this set |
