LoRa Test GPS Set

Code: HWS015
Tip
Brand: HARDWARIO
€229 €277,10 incl. VAT
In stock

Fully configurable battery-operated LoRa tester based on HARDWARIO IoT Kit. You can configure every LoRa parameter and use GPS with TTN Mapper.



Detailed information

Product detailed description

LoRa Test GPS

With the LoRa Test you can easily test any LoRaWAN network. The tester is fully configurable, battery powered. Data is displayed on the LCD display, configuration is done with integrated buttons. Thanks to the GPS-enabled module, you can also send current location information and display it in the TTN Mapper service. This also lets you know the signal strength.

Open-source code, worldwide frequencies, datarates including class C and support for periodic sending. More information about the project can be found at Hackster.io

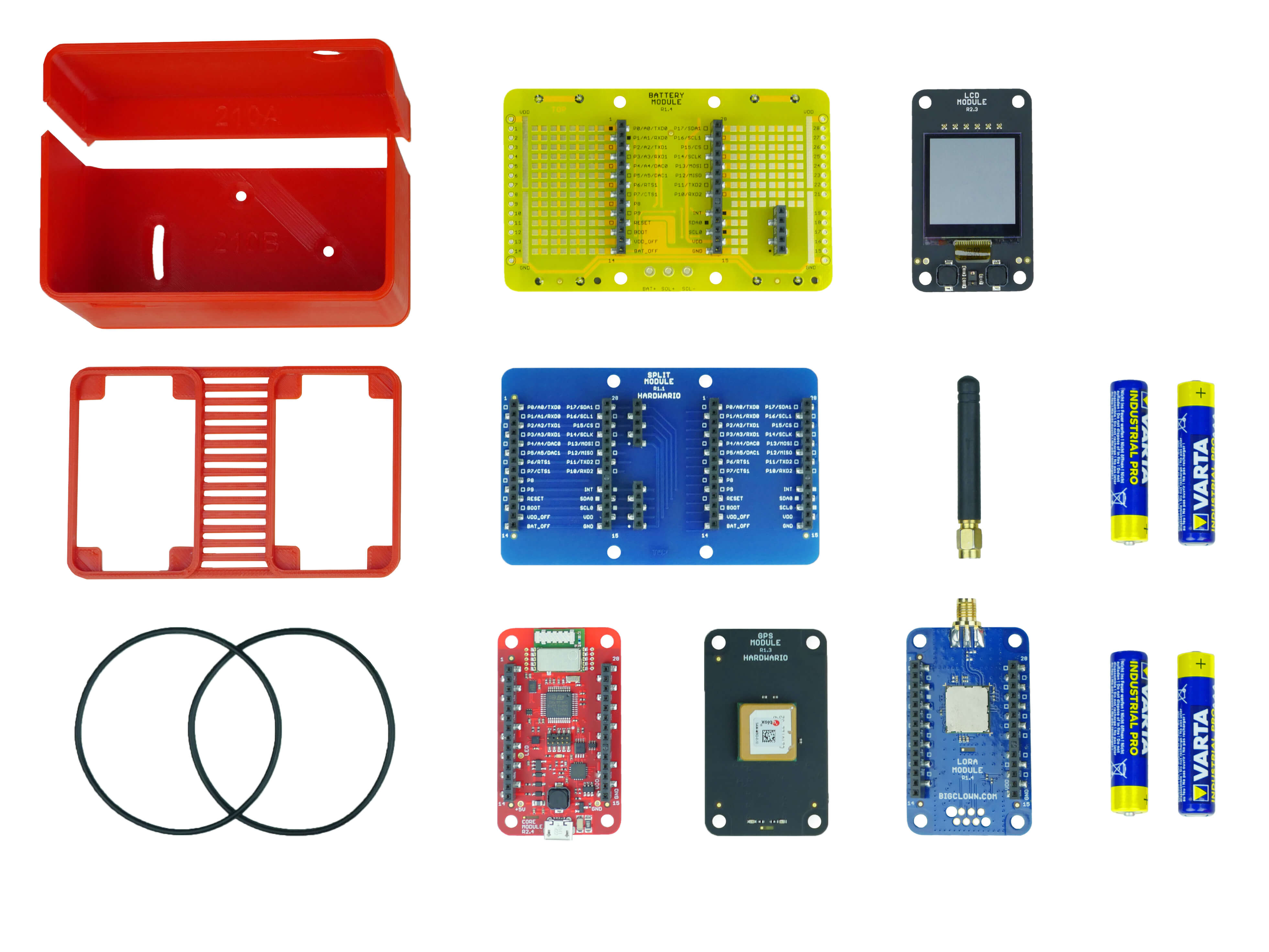

LoRa GPS Tester Set includes:

  • Core Module,
  • LoRa Module,
  • Display Module,
  • GPS Module,
  • Split Module,
  • Battery Module,
  • 4 AAA batteries,
  • 3D printed enclosure 210,
  • fastening rubber bands.

Industrial IoT Kit

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

Projects

The basic function of this set is to test the LoRaWAN network. Since it also includes a Core Module that is equipped with a 3-axis accelerometer and a digital thermometer, you can also use this kit as a LoRaWAN thermometer or send LoRaWAN network information about device shaking.

You can easily add any of our modules to the set.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Windows, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

Introducing HARDWARIO Playground

More about Core Module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2V to 3.6V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimensions 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
Uploaded firmware in this set twr-lora-tester


Additional parameters

Category: Sets
Warranty: 3 years
