Modules and Tags
TOWER Modules

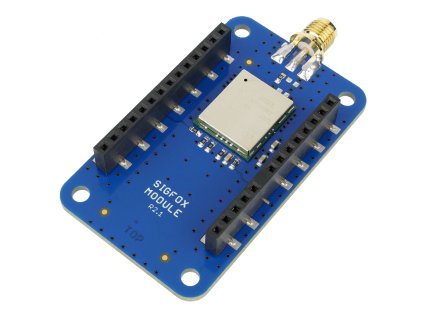

TOWER is an industrial kit you can use to build Internet of Things projects effortlessly. You can choose modules you need for you project. You will definitely need Core Module to make it work. Choose standard version to communicate via 868/915 Sub-GHz radio or NR version in combination with LoRa Module or Sigfox Module.
Learn more about TOWER on our website. If you are not sure with modules choose don't hesitate to contact us via Chat or select one of our prepared bundles. For first steps we have prepared Starter Bundle.
The Core Module is the key element of every HARDWARIO node. It has a 32-bit ARM microcontroller with 192 kB of flash memory and 20 kB of RAM. Besides the integrated sub-GHz...
The Radio Dongle is the main element of the HARDWARIO radio network. This product works as a gateway for HARDWARIO IoT Kit's nodes. It looks like a USB stick. You can plug it to...
The CO2 Module is a gas sensor for measuring carbon dioxide (CO₂) concentration. This module achieves ±50 ppm accuracy. It uses a non-dispersive infrared (NDIR) sensor...
The LoRa Module allows you to communicate to the LoRaWAN wireless network, a network made for the IoT. This technology makes it possible to communicate from a battery-powered...
The Core Module is the key element of every HARDWARIO node. It has a 32-bit ARM microcontroller with 192 kB of flash memory and 20 kB of RAM. Besides the integrated sub-GHz...
The Climate Module integrates 4 environmental sensors - temperature, humidity, light intensity and atmospheric pressure. All sensors are digital, feature low-power operating...
The Button Module is as simple as its name speaks. It has one large button that feels good to click. You can use it to trigger various actions, e.g. turn on the light, send a...
The Battery Module is designed as a power supply source for the battery-operated units. The integrated low-power buck converter provides an excellent efficiency from the four...
The Mini Battery Module is designed as a power supply source for the battery-operated units. The integrated low-power boost converter provides an excellent efficiency from the...
The Sensor Module features up-to four universal inputs or outputs on a pluggable terminal block with 1-Wire bus master support. The terminals can be used as both analog and...
The Relay Module is suitable for switching small power appliances - e.g. LED strip, cooling fan, siren, buzzer, garage door opener, etc. It features a bistable (or latching)...
The Radio Dongle is the main element of the HARDWARIO radio network. This product works as a gateway for HARDWARIO IoT Kit's nodes. It looks like a USB stick. You can plug it to...
The PIR Module works as a motion detector operating on a passive infrared (PIR) principle. A typical usage of the PIR Module can be a wireless motion detector located on a wall...
The GPS Module allows you to know the exact position of your device. It is using SAM-M8Q module from ublox. It understands 3 global positioning standards GPS, Galileo and...
The Power Module allows you to connect a 5 V DC power adapter via a standard 2.1 mm power jack socket. It features a high-current relay (230 V AC / 16 A) to control your...
The LCD Module uses a unique technology - the so-called memory display developed by Sharp. It provides a resolution of 128 x 128 pixels in 1.28 inch size. It implements an...
Bridge Module provides an easy path to connect some of the BigClown modules and/or tags to the USB host like Raspberry Pi or any desktop/laptop computer.
The Compact Split Module makes it possible to use two top modules or create more compact designs. Now you can create much more devices that combine for example LCD Module,...

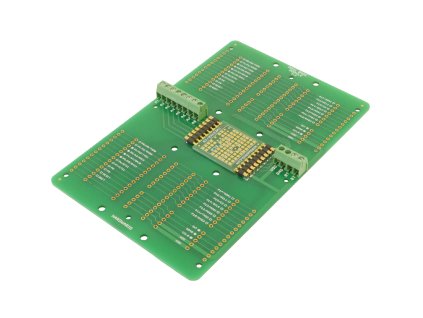

The Maxi Base Module serves as a base for IoT kit assemblies, which you simply place to the Takachi industrial enclosure (IP67). In addition to connecting any module, the kit...
The Mini Cover Module is a simple mechanical part that helps to cover the front face of the BigClown electronics (smaller format 33 x 55 mm). It looks great when combined with...
The Cover Module is a simple mechanical part that helps to cover the front face of the BigClown electronics (larger format 88 x 55 mm). It looks great when combined with one of...
The Base Module works as a mechanical stand for the BigClown units. With the exception of the Battery Module, you can plug any other BigClown module into a standardized socket...
The Split Module makes it possible to use two top modules or create more compact designs. Now you can create much more devices that combine for example LCD Module, Climate...
The Tag Module makes it possible to connect up to six BigClow tags. There are two independent I²C buses (I2C0 and I2C1) - one on each side. This allows to connect two tags of...
The 1-Wire Slave Module allow you to connect I²C devices over a distance of several meters. The I²C protocol is encapsulated to a 1-Wire protocol. The data are protected using...
The Barometer Tag allows you to measure absolute pressure in the range from 20 kPa to 110 kPa, or altitude above the sea level in meters. It uses a low-power I²C sensor...
The Breadboard Module offers an easy way to connect any BigClown module to your breadboard. The narrowed breakout provides more space for wiring and prototyping. The precision...
The Encoder Module can be useful for controlling your applications. The module is equipped with a high-quality rotary encoder manufactured by Bourns and features high...
The Humidity Tag uses a high-accuracy humidity sensor SHT20 with a typical accuracy of ±3 % from 20 % to 80 %. This sensor is digital and calibrated. It communicates using an...

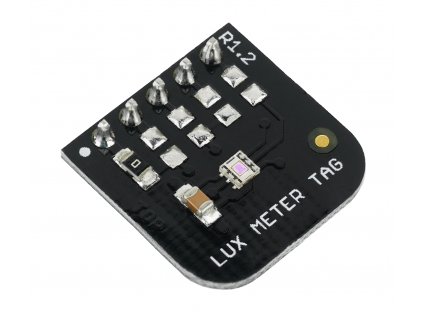

The Lux Meter Tag uses a high dynamic range light intensity sensor OPT3001 that can measure illuminance from 0.01 to 83,000 lux. This sensor is digital and calibrated. It...
The NFC Tag operates as a dual port memory. You have the the NFC protocol from one side and the I²C bus interface from the other side. It features a 1 kB EEPROM memory. The chip...

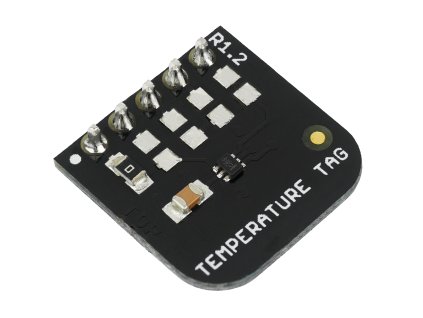

The Temperature Tag uses a high-accuracy temperature sensor TMP112 with a typical accuracy of ±0.1 °C at 25 °C. This sensor is digital and calibrated. It communicates using an...
The VOC-LP Tag is a gas sensor for measuring volatile organic compounds (VOC) concentration. This is useful for indoor air quality monitoring applications....
