    Motion Set

    Code: HWS005
    Tip
    Brand: HARDWARIO
    €59 €71,40 incl. VAT
    In stock

    Motion Set makes it possible to detect human presence. It communicates wirelessly and operates up to 2 years from the standard Alkaline batteries. Using the digital, low-power, passive infrared technology (PIR), you will be able to build your own alarm or turn on the lighting automatically.

    Detailed information

    Related products

    pir module a1
    PIR Module
    In stock
    €19,40 incl. VAT
    €16

    The PIR Module works as a motion detector operating on a passive infrared (PIR) principle. A typical usage of the PIR Module can be a wireless motion detector located on a wall...

    Code: HWM011
    dongle
    Tip
    Radio Dongle
    In stock
    €47,20 incl. VAT
    €39

    The Radio Dongle is the main element of the HARDWARIO radio network. This product works as a gateway for HARDWARIO IoT Kit's nodes. It looks like a USB stick. You can plug it to...

    Code: HWG001
    lora module a
    LoRa Module
    In stock
    €56,90 incl. VAT
    €47

    The LoRa Module allows you to communicate to the LoRaWAN wireless network, a network made for the IoT. This technology makes it possible to communicate from a battery-powered...

    Code: HWM022
    Show all related products

    Product detailed description

    Industrial IoT Kit

    HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

    Motion Set

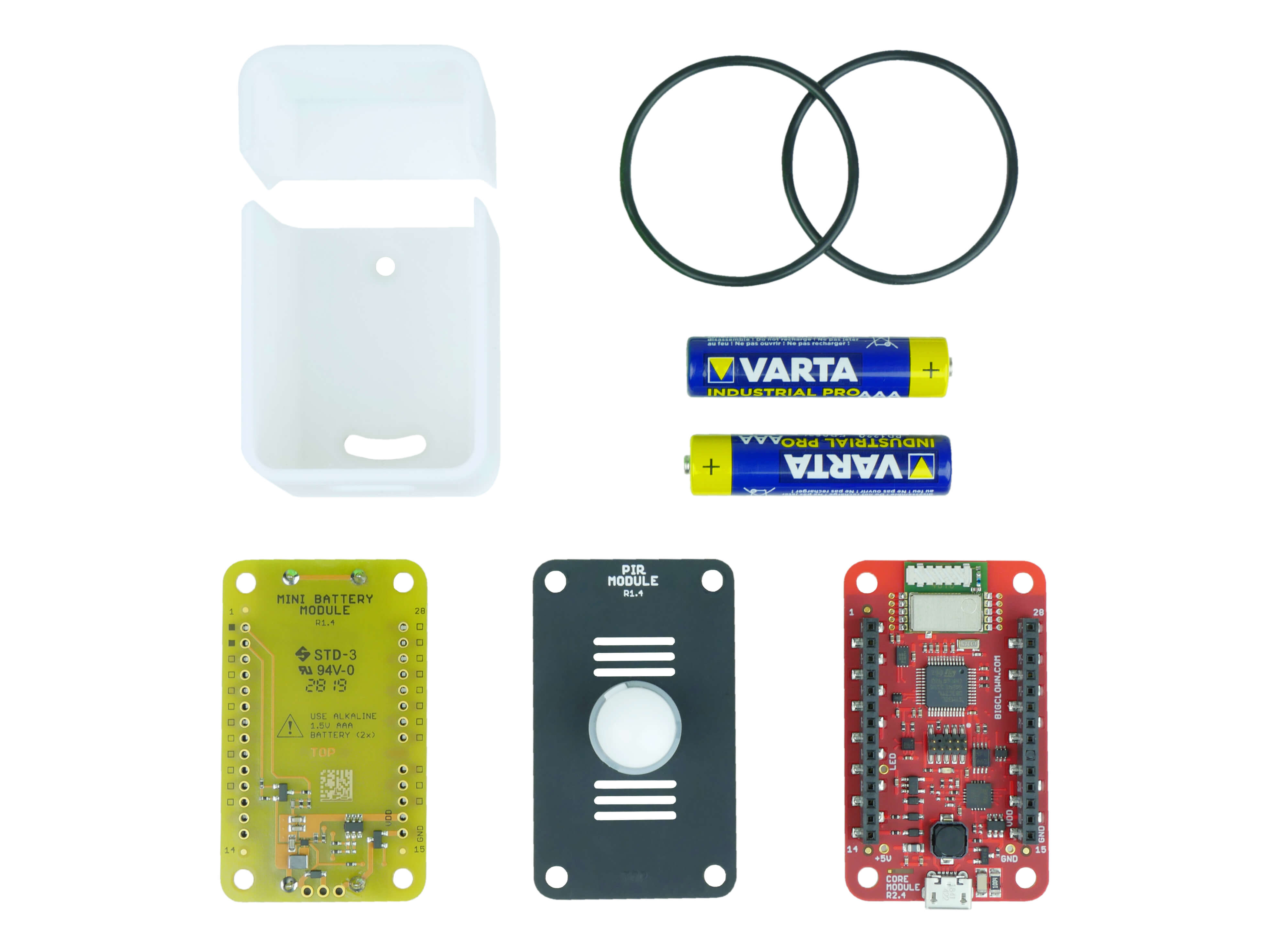

    With Motion Set, you can detect movement around the installed equipment. It detects using digital, passive infrared (PIR) technology. The Motion Set includes:

    • Core Module,
    • PIR Module,
    • Mini Battery Module,
    • 2 AAA batteries,
    • 3D printed enclosure 101,
    • fastening rubber bands.

    The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.

    Projects

    The basic function of this set is motion detection. For example, you can use it to create your own alarm or automatically trigger the lighting in the room when motion is detected.

    Since it also includes a Core Module that is equipped with a 3-axis accelerometer and digital thermometer, there are a variety of other projects you can do with the kit. You can find the basic projects on the web, and more at hackster.io.

    HARDWARIO Playground

    The kit includes the HARDWARIO Playground app, which can be downloaded for Window, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

    The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

    Introducing HARDWARIO Playground

    More about Core Module

    MCU 32-bit ARM Cortex M0+ STM32L083CZ
    Radio communication SPIRIT1 868 or 915 MHz
    Memory 192 kB flash / 20 kB RAM
    Voltage range from 2V to 3.6V
    Idle consumption < 30 μA
    Operating temperature range from -40 to +70 °C
    Dimensions 33 mm (width) × 55 mm (height)
    Interfaces 18× GPIO, 3× UART, 2× I2C
    1× SPI, 5× ADC, 2× DAC,
    10 pins SWD connector for debugging
    Uploaded firmware in this set

    twr-radio-motion-detector


    Additional parameters

    Category: Sets
    Warranty: 3 years
