Control Set

Code: HWS009
Brand: HARDWARIO
€129 €156,10 incl. VAT
In stock

Control Set allows you to control appliances. You can use it to drive a digital LED strip or control an appliance using the integrated power relay (230V/16A). It has two pluggable terminals - one for a digital LED strip, second for an appliance-driven by the relay. It communicates wirelessly and operates from a 5V AC/DC power adapter.

Detailed information

Product detailed description

Industrial IoT Kit

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

Control Set

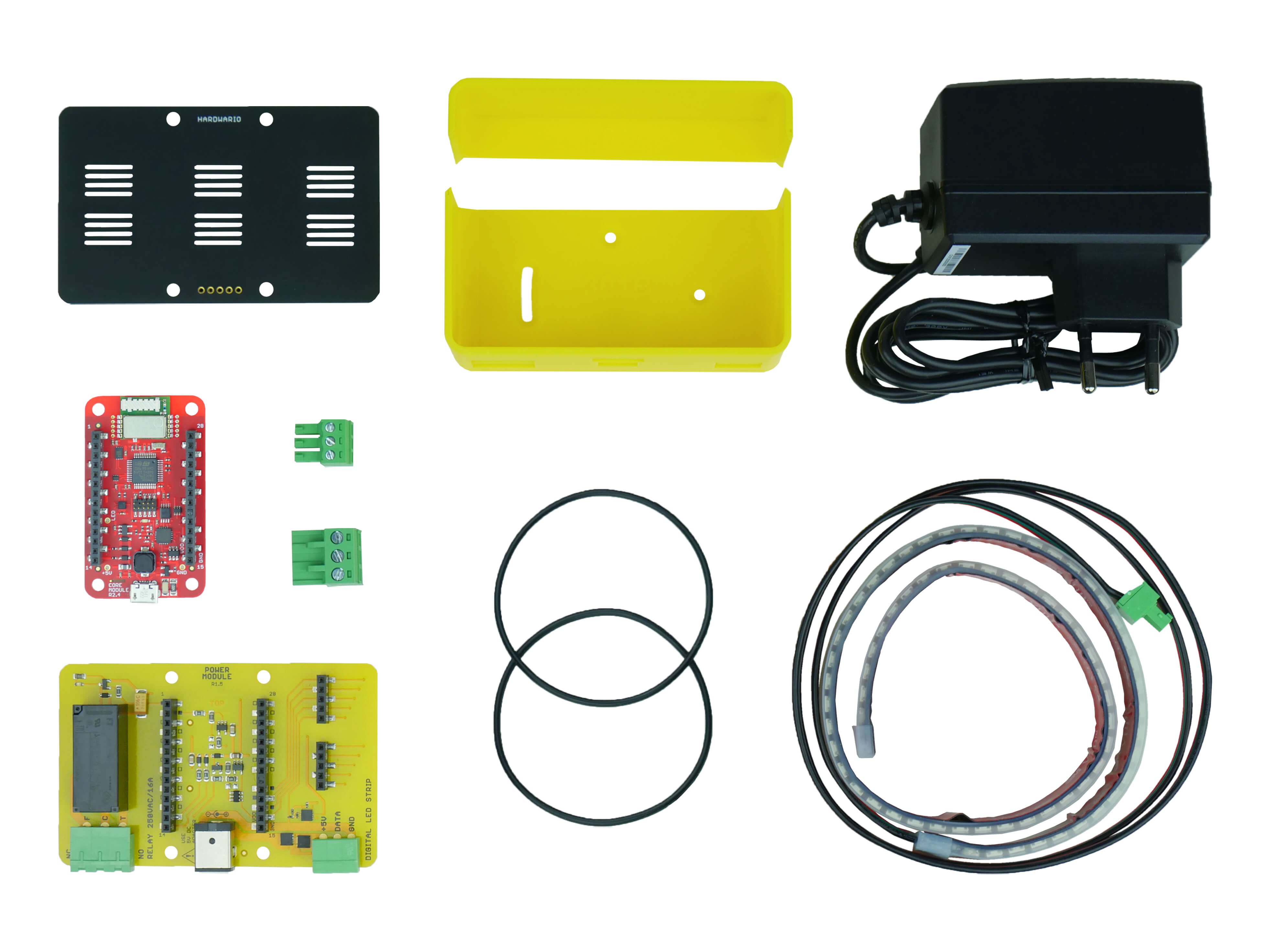

With the Clime set you can control household appliances such as a gas boiler or control a digital LED strip thanks to the integrated power relay (230V/16A). The Control set includes:

  • Core Module,
  • Power Module,
  • Cover Module,
  • AC/DC Adapter
  • 3D printed enclosure 301,
  • fastening rubber bands.

The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.

Projects

The basic function of this set is to switch the integrated power relay (230V/16A). It is powered by an AC/DC adapter included in the package. With the relay you can, for example, control programmable LED strips to be used for smart lighting at home, in the office or for the Christmas tree. You can also use the power to control household appliances such as a gas boiler or a "non-smart" lamp.

Since it also includes a Core Module that is equipped with a 3-axis accelerometer and digital thermometer, there are a variety of other projects you can do with the kit. You can find the basic projects on the web.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Windows, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

Introducing HARDWARIO Playground

More about Core Module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2V to 3.6V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimensions 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
Uploaded firmware in this set twr-radio-power-controller
(to control the LED strip, select the type according to the number of LEDs)


Additional parameters

Category: Sets
Warranty: 3 years
