Push Set

Push Set allows you to trigger actions or control various appliances remotely. It communicates wirelessly and operates up to 2 years from the standard Alkaline batteries. You can open your garage door, turn on the party lights, call your kids for dinner or just keep pushing it for the sake of fun…

In stock
Code: HWS004
Brand: HARDWARIO
€60,50 €50 excl. VAT
Category: Sets
Warranty: 3 years

Industrial IoT Kit

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

Push Set

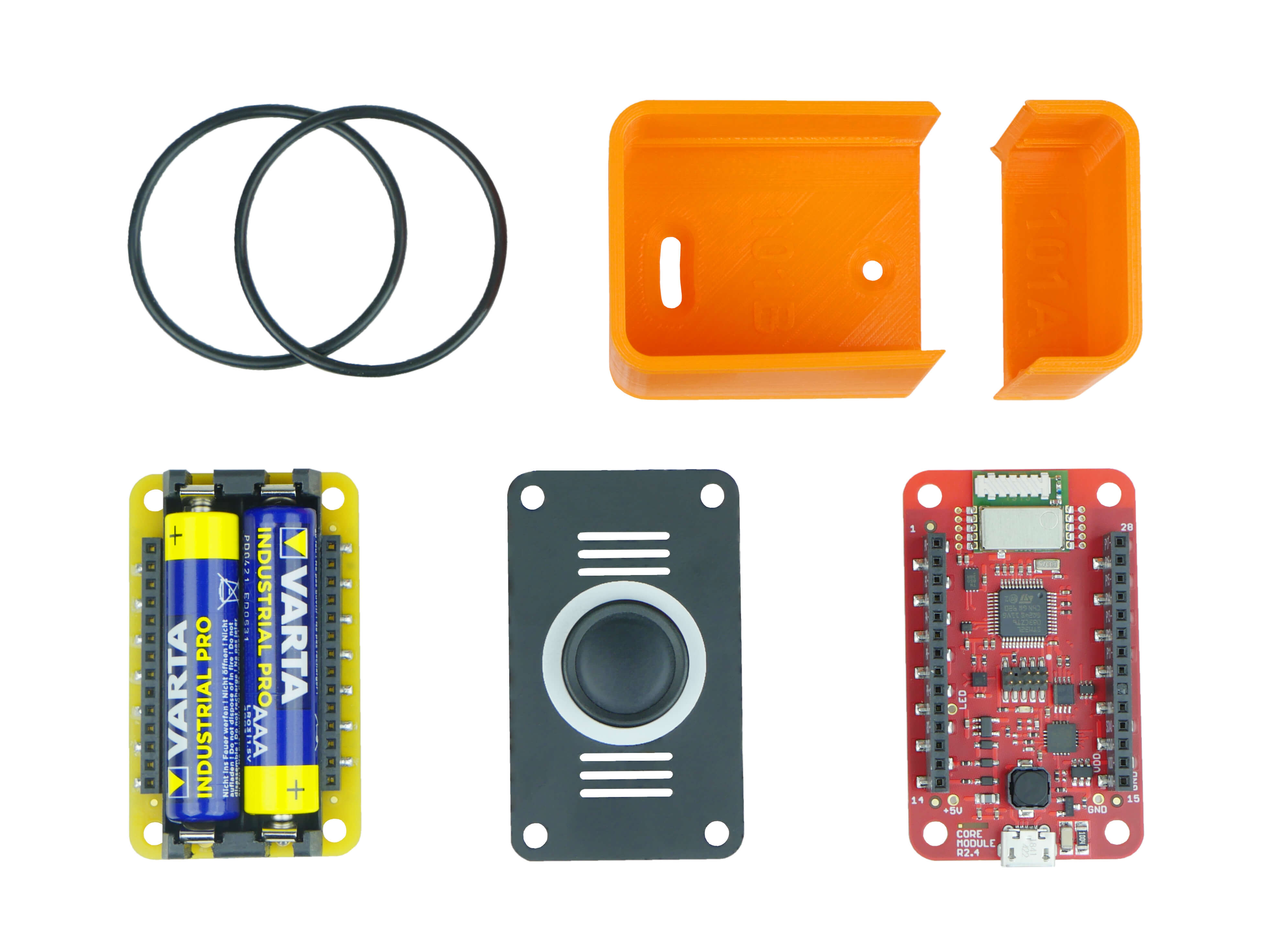

The Push Set will allow you to wirelessly trigger actions, send temperature and device orientation. In addition to short presses, it can also distinguish between double presses and long presses. Push Set contains:

  • Core Module,
  • Button Module,
  • Mini Battery Module,
  • 2 AAA bateries,
  • 3D-printed enclosure 101,
  • rubber bands.

The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.

Projects

The basic function of this kit is a button, but because the Core Module is also equipped with a 3-axis accelerometer and digital thermometer, there are a variety of projects you can do with the kit. You can find the basic projects on the web, and more at hackster.io.

STEM education

For the Start Set, we have prepared a sample STEM education lesson for primary and secondary schools and after-school clubs.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Window, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

Introducing HARDWARIO Playground

More about Core Module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2V to 3.6V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimensions 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
Uploaded firmware in this set

twr-radio-push-button
