Sensor Set

Sensor Set is designed for connecting external sensors - soil moisture sensor, temperature sensor or sensors for monitoring energy meter pulses. Data is transmitted via the integrated Sub-GHz radio to the Radio Dongle.

In stock
Code: HWS024
Brand: HARDWARIO
€72,60 €60 excl. VAT
Category: Sets
Warranty: 3 years

Industrial IoT Kit

HARDWARIO TOWER is an industrial kit that makes it easy to build IoT projects. It is particularly suitable for Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and can run on batteries for several years.

Sensor Set

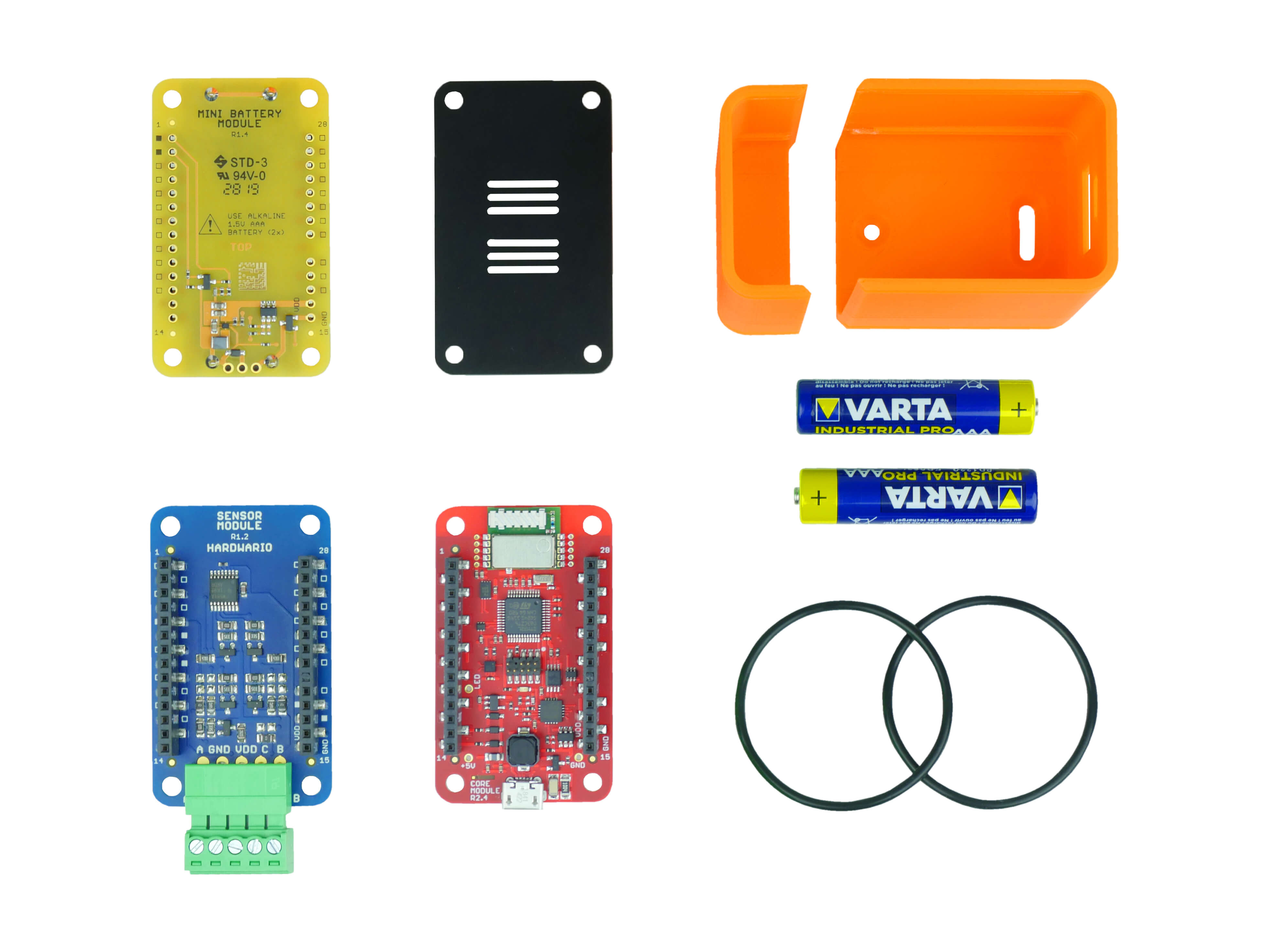

The Sensor Set is designed for connecting external sensors - soil moisture sensor, temperature sensor or sensors for monitoring energy meter pulses. Data is transmitted via the integrated Sub-GHz radio to the Radio Dongle. The Sensor Set includes:

  • Core Module,
  • Sensor Module,
  • Mini Cover Module,
  • Mini Battery Module,
  • 2 AAA batteries,
  • 3D printed enclosure 105,
  • fastening rubber bands.

The set does not include the Radio Dongle, which you need to communicate with the computer. If you don't have it yet, be sure to buy it.

Projects

The basic function of this kit is to connect external sensors. The supported interfaces are 1-Wire, pt100, pt1000, you can also connect analog sensors, buttons or switches. The ready-to-use firmware set includes temperature, soil moisture and pulse sensors for energy meters.

Since it also includes a Core Module that is equipped with a 3-axis accelerometer and digital thermometer, there are a variety of other projects you can do with the kit. You can find the basic projects on the web, and more at hackster.io.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Window, MacOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware and add the required functions using the Node-RED application.

The entire kit is open-source and supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home or Apple HomeKit.

Introducing HARDWARIO Playground

More about Core Module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2V to 3.6V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimensions 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C
1× SPI, 5× ADC, 2× DAC,
10 pins SWD connector for debugging
Uploaded firmware in this set

twr-radio-soil-sensor

(for Soil Sensor)
